Is It Regular 8 or Super-8 Film?

Here is a little puzzle:

Try to figure out which of these two reels has Regular 8mm and which has Super-8 film wound onto its reel.

One can determine what kind of film is wound onto each of these reels just by noting the difference in the way the wound film appears.  However,  a prerequisite is knowing how the film was processed, at the lab.

Hint: Observe the difference in how the light reflects off the edge of the film.

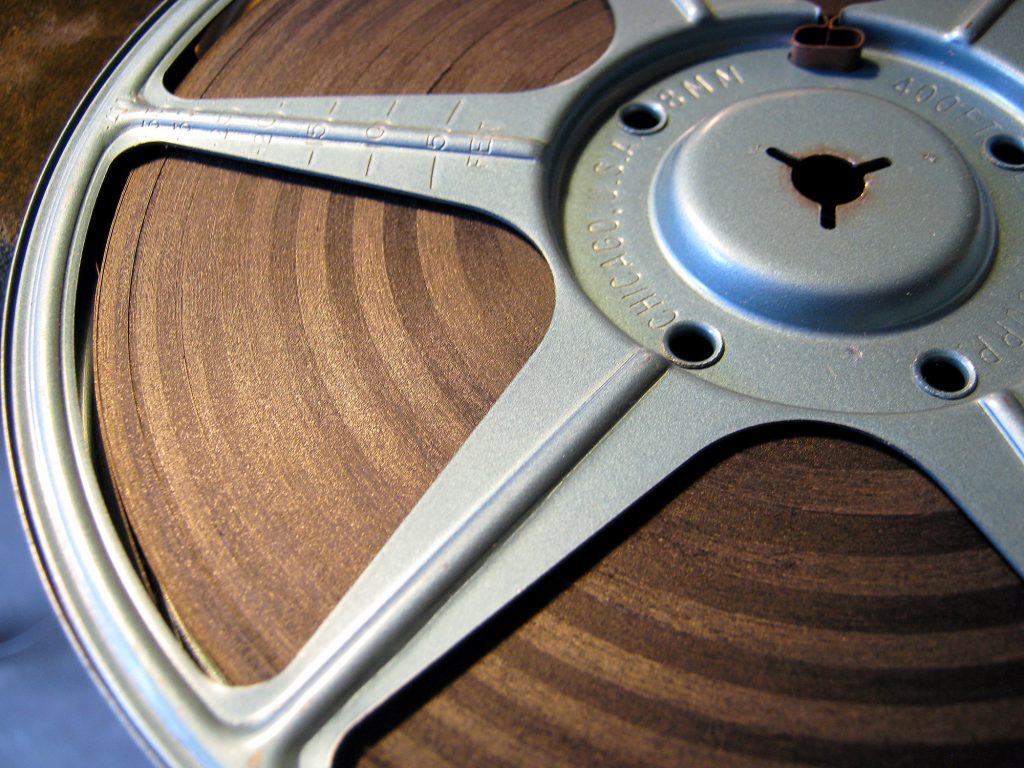

Do you see the striped pattern? These revealing measured alternating bands of light reflection will give you the answer. The smaller hole in the center of the film reel can also be a clue -- but careful, see below.

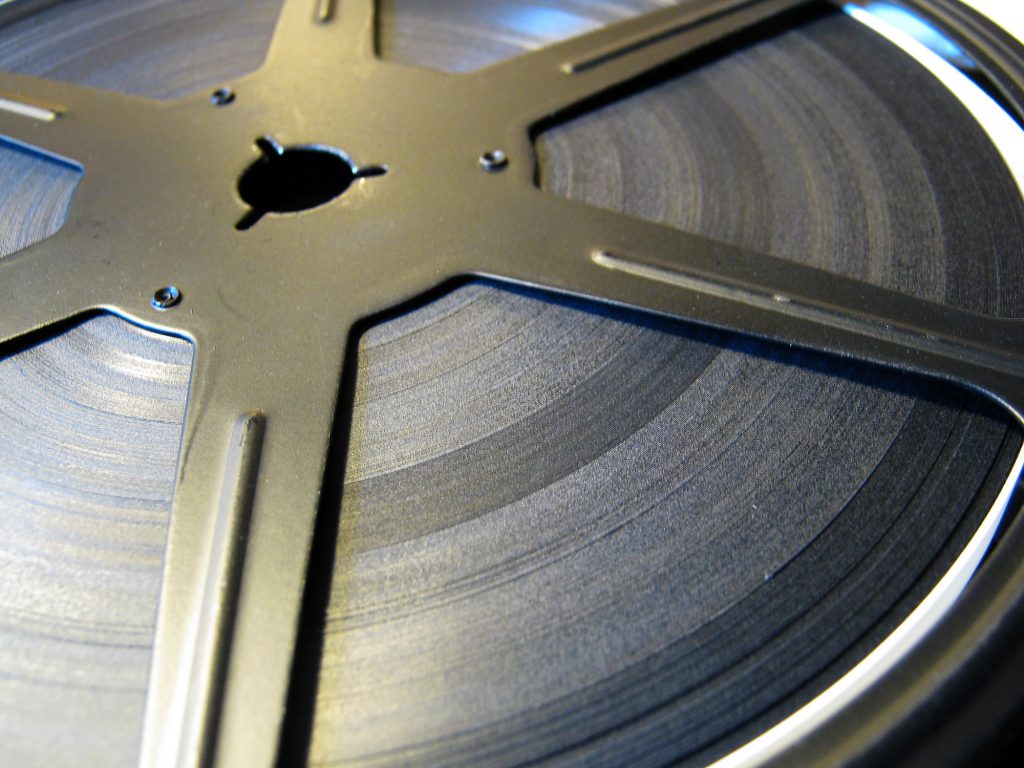

Now, look at this reel and note the light reflecting off the film's edge. The notable meaured line pattern is missing; and the center hole is much larger.

Did you figure out which is which?

Answer:

The top image is Regular 8 film (a.k.a. "Double 8" or "Normal 8"), and the bottom image depicts Super 8 film.

The Regular 8 film has these measured alternating patterned, banding sections, of 25 feet in length, because after processing at the lab, the original film gets cut in half. The lab then wound it onto the reel and it showed up in this fashion. More detail - here.

As for the reel's center hole size: Regular 8mm film has a smaller center hole than does Super 8mm film.  Yet, there is something to keep in mind: Either type of film format can be mistakenly wound onto the wrong type of reel. That's why it's so handy to know how to discern the perforation hole size difference (or, that distinguished alternating, patterned banding of Regular 8 film, as described above.)

Author: Nathaniel Courtens
